HYDRAULIC HOLLOW CHISEL MORTISER

TC-105

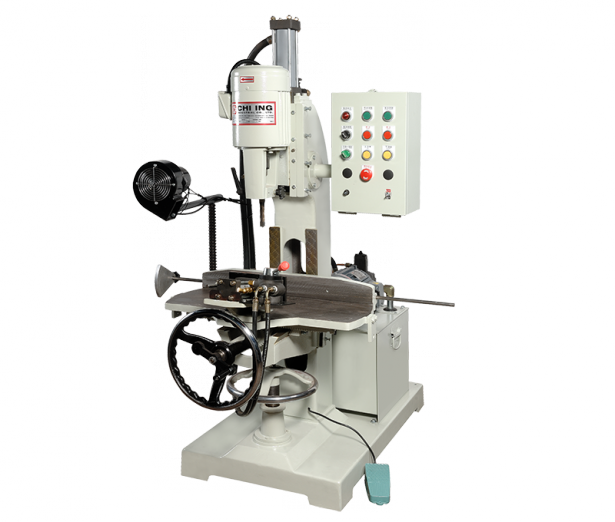

Hydraulic Hollow Chisel Mortiser

Production Information

Hydraulic Hollow Chisel Mortiser

HYDRAULIC POWER STROKE HEAD

Hydraulic drive gives the most smooth cut while in heavy mortise operation. Separate fan blower keeps work clean.

MODEL	TC-105
Chisel Range	1/4” to 1“
Table	14” x 27-1/2”
Table cross traverse	5”
Table longitudinal traverse	18”
Table vertical traverse	12”
Head drive	Hydraulic
Clamp drive	Hydraulic
Chuck capacity	1-1/8”
Spindle speed	3400RPM
Maximum stock width	10”
Maximum mortising depth	4”
Head motor	2 HP
Hydraulic pump motor	2 HP
Net weight	380kg
Gross weight	460kg
Packing dimension ( L x W x H )	103 x 140 x 182 cm
*All specification and design characteristics shown in this catalogue are subject to change without prior notice
